1/2/4 Door TCP/IP Network Wiegand Door Access Control Board For Security Access Control System Door Access Controler

AT serial access controller is adopted the Newest 32-bit
ARM cpu, it have very stronger fucntion. Its main function include:
Attendance / Access control / Access alarm / Fingerpint /  Web function /
cell phone .

Attendance :support normal shif rules and Multi-shif rules ,this can meet variety of attendance needed.

Access control:support Time profile / password manage / anti-passback / inter lock / first card / task list .

Access alarm:support door open too long warm / door forced open / invalid card / fire alarm / Threat code / force lock

Fingerpint: support finger reader, it's better use our company Finger device, so it can use one software to manger.

Fire alarm:Fire alarm triggered , All doors are opened automatically and alarm is output at the same time

QR  function:support various QR code generators

web function:support PC,tablet ,cell phone use IE or Chrome  browser etc.

Cell phone: support Android phone and Apple phone, support WIFI/2G/3G/4G remote control,can open door at anywhere at any time via phone!

Main parameters

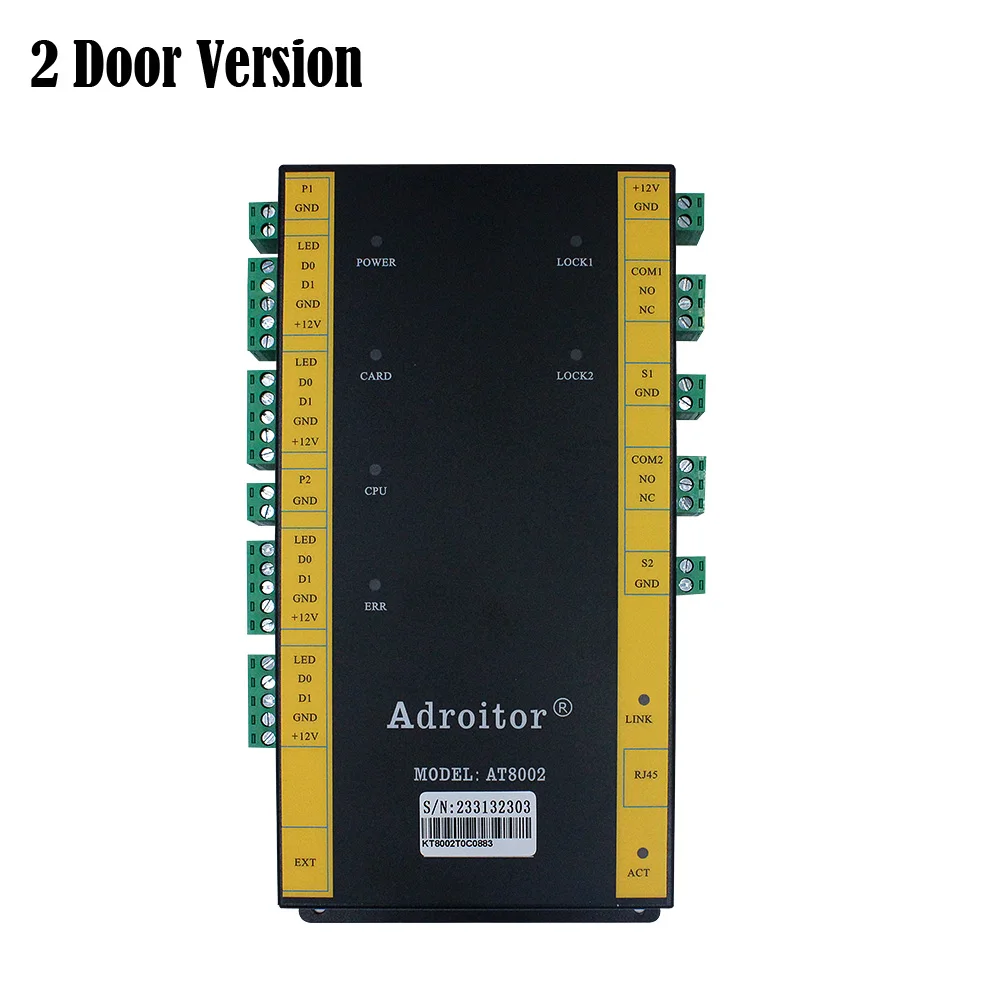

Model:AT8001/AT8002/AT8004

Mange door: 1/2/4

Card number:40 000

store card record :100 000

Reader Input format:wiegand 26/ wiegand 34

communication: TCP/IP

Database: Access or SQL 2000,SQL2005,SQL 2010, default :Access

support OS: XP, WIN7,WIN8, WIN10

power:12V
